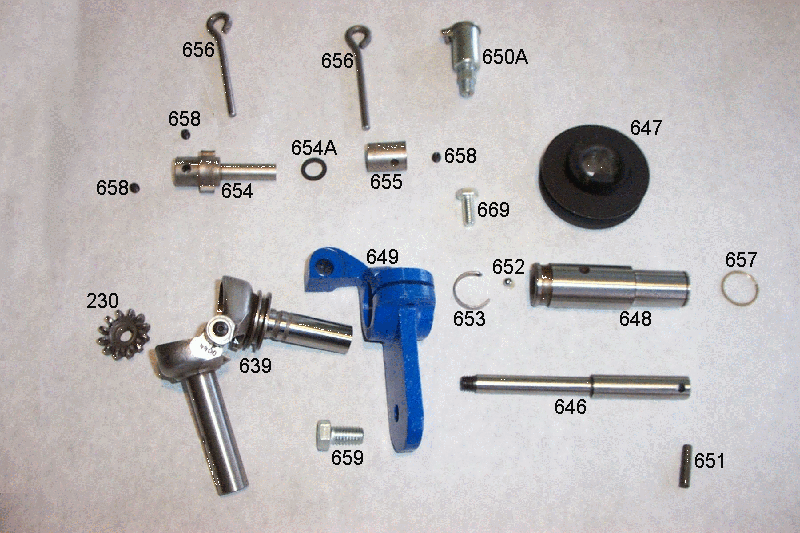

JB Clutch and Parts


Stock # JB Clutch and Parts Price
639 Joint - JB clutch $133.45
645 Clutch - with 3 3/4" pully $259.95
646 Drive Spindle $26.25
647 Pulley - 2 3/4" $38.65
648 Bushing $37.40
649 Mount Bracket $36.70
650 Oil Fitting - small - 2 oiler size $18.25
650A Oil Fitting - large - 1 oiler size $18.25
651 Spindle Pin $4.00
652 Hold in Ball - size 7/32" $2.75
653 Hold in Spring $5.50
654 Throw in Spindle $21.25
654A Fiber Washer - between #654 & 655 $2.05
655 Throw in Spindle Cap $9.25
656 Throw in Arm $8.30
657 Pulley Retainer Spring $4.40
658 Throw in Lock Screw - 1/4" size $1.00
659 Bracket Bolt - 5/16" X 3/4" $1.25
669 Mount Clamp Bolt - 7/16" X 3/4" $1.25
670 Motor Bracket - adjust use for clutch $52.50

Stock # Motor Spindles & Misc. Price
601 Pulley - 5/8" bore, Variable speed $33.75
612 Bushing - 5/8" shaft $3.70
615 Motor Connector - for 5/8" shaft $21.25
616 Nut - used with #615 $5.35

Stock # Hangers & Parts Price
199 Hanger - 67" complete with #225 Joint $337.35
200 Tube - 48" long for #199 hanger $35.70
200A Spindle - 43 3/16" long for #200 Tube $21.55
201 Hanger - 77" complete with #225 Joint $337.35
204 Hanger - 67" or 77" less the top joint $208.85
205 Spindle - 53 3/16" long for the #210 tube $21.55
206 Spindle - 13 1/4" long for #211 tube $16.20
207 Screw End - used with tube spindles $24.25
210 Tube - 58" long for #201 $35.70
211 Tube - 18 3/4" long (bottom tube) $19.65
211F Tube - bottom tube for ferrule $19.65
212 Tube clamp & screw $5.75
215 Bayonet Joint $9.95
217 Fiber Washer - for #219 $0.40
219 Screw - for #220 joint $1.60
220 Joint - for 12 tooth cog $129.00
222 Yoke - short half, 18 tooth cog $56.15
223 Yoke - long half, 12 tooth cog $56.15
225 Joint complete - spindle, nut, 18 tooth cog $137.60
230 Cog - 12 tooth $18.85
233 Cog - 18 tooth $25.45
239 Hanger - 49" complete with #225 joint $337.35
240 Hanger - 49" less top joint $208.85
241 Tube - 30 1/2" long for #239 hanger $35.70
243 Spindle - 25 1/4" long for #241 tube $21.55
244 Flex Hanger - uses #225 speed up joint or # 645 clutch $296.95
245 Solid Hanger - complete with 1/3 hp/motor & Bracket $639.40
246 Flex Hanger - complete with 1/3 hp/motor & Bracket $691.40
247 Flex Hanger - Flexible inside cable $135.00
248 Flex Hanger - Flexible outside tube $135.00


Repairs

The hourly rate is $50.00 plus parts. A cleaning fee of $10.00 will be added to all repairs if our machinists have to clean the equipment before work can begin. When returning defective merchandise, please include explanatory notes so proper credit can be given. There is a small shipping and handling fee on all orders. If there are any questions regarding the ordering of equipement or parts, please feel free to call the office.

**Prices Subject To Change Without Notice**

At this time we do not accept orders over the internet. In order that we may serve you best and avoid costly mistakes,
it is much better to speak with one of our experienced professionals directly over the phone. While we understand that this
may seem inconvenient to you now, it is still the best way for us to give you, our customers, personal attention and
ensure that you're getting exactly the part(s) you really need, which will save you time and money in the long run.
