JB 99 Three Point Cutter
JB 102 Four Point Cutter

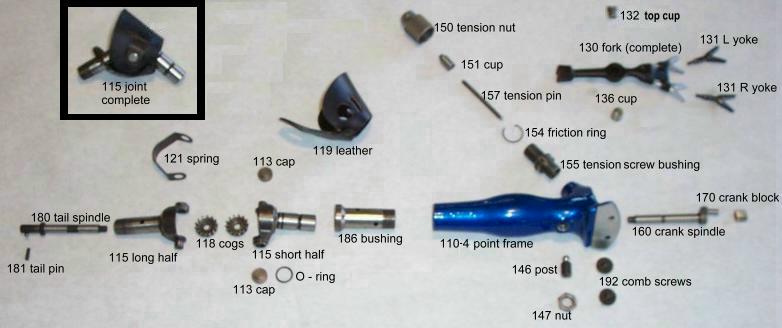

| Stock # | JB Machine Parts | Price |
|---|---|---|
| 99 | JB Handpiece - 3pt. Worm Drive | $312.50 |
| 99 | JB Handpiece - 3pt. Pin Drive | $302.50 |
| 102 | JB Handpiece - 4pt. Worm Drive | $250.00 |
| 102 | JB Handpiece - 4pt. Pin Drive | $240.00 |
| 110 | Frame - 3 or 4 point | $48.70 |
| 113 | Cap - use with #115 Joint | $3.55 |
| 115 | Joint for all JB Handpieces Complete | $129.00 |
| 118 | Cog - For #115 Joint | $11.10 |
| 119 | Leather - for #115 Joint | $8.95 |
| 121 | Spring - for #115 Joint | $3.00 |
| 127 | Screw (#7445) for stop screw | $1.95 |
| 129 | Fork Complete - for #100 Handpiece (not shown) | $114.85 |
| 130 | Fork Complete - for #102 Handpiece | $114.85 |
| 131 | Yoke - specify left or right | $16.30 |
| 132 | Cup - top fork cup for #130 fork | $6.05 |
| 136 | Cup - bottom fork for all JB forks | $6.05 |
| 138 | Tips - for #139A fork | $1.95 |
| 139A | Fork ball type for #99 | $114.85 |
| 142 | Tongue for #139A fork | $13.55 |
| 144 | Pin for tongue | $1.05 |
| 146 | Post - assemblies in all JB's | $6.05 |
| 147 | Nut - fits all JB posts | $2.80 |
| 150 | Tension nut - fits all JB's | $22.25 |
| 151 | Cup - for tension nut #150 | $6.05 |
| 154 | Friction Ring - for #155 sleeve | $1.95 |
| 155 | Tension Bushing | $12.30 |
| 157 | Tension Pin - use with #102 | $7.10 |
| 157L | Tension Pin - use with #99 & #100 | $7.10 |
| 159 | Tension Pin - use with #99 & #100 | $7.10 |
| 159L | Tension Pin - use with #99 & #100 | $7.10 |
| 160 | Crank Spindle - for #102 | $29.65 |
| 164 | Crank Spindle - ball type for #99 & #100 | $29.65 |
| 170 | Crank Block - use with #130 fork | $13.55 |
| 174 | Ball (3031) for #128 & #139 fork | $13.55 |
| 180 | Tail Spindle - fits #115 Joint | $17.35 |
| 181 | Tail Pin - for #180 | $1.95 |
| 186 | Bushing - for #102 Handpiece | $42.70 |
| 189 | Bushing - for #99 Handpiece | $42.70 |
| 192 | Comb Screw - for JB comb plate | $3.00 |
| Two Fork Tips Replaced Tips are replaced with silver solder then dipped in oil |
$16.75 | |
| These pieces are only sold as part of the 115 complete joint. | $0.00 |
